Seismic Tomography Refraction/Reflection Surveys in Markham

Together, we solve the challenges of tomorrow.

LEARN MORE →

The National Building Code of Canada requires a comprehensive geotechnical investigation for any major structure, and in Markham the variable glacial geology makes standard borehole data alone insufficient. The Oak Ridges Moraine deposits that underlie much of the city create layered sequences of sand, silt, and clay till where seismic velocity contrasts can be subtle but structurally significant. We run refraction and reflection tomography to image these transitions continuously across a site, bridging the gaps between point-source data from SPT drilling and lab testing. A single survey line can map bedrock topography under 30 meters of overburden without a single excavation, giving the structural engineer a calibrated shear-wave velocity model to feed directly into site class determination per NBCC Table 4.1.8.4.A. The result is a defensible foundation design that anticipates differential settlement before the first bucket of soil is moved.

Seismic tomography turns a handful of borehole logs into a continuous cross-section, revealing what lies between the data points that traditional drilling alone cannot see.

Process and scope

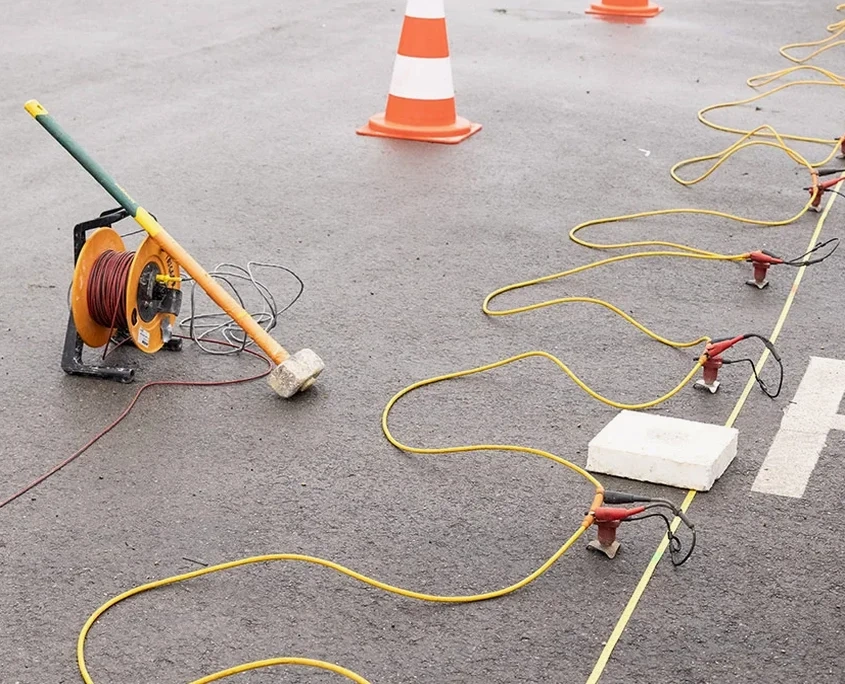

Markham sits at roughly 200 meters elevation on the south flank of the Oak Ridges Moraine, a geological feature that deposited up to 150 meters of Pleistocene sediment across York Region. This means bedrock can vary from 5 meters to over 60 meters depth within a single subdivision, something we have mapped repeatedly along the Highway 7 corridor and in developments near the Rouge River valley. Our standard acquisition deploys 24 to 48 geophones with a sledgehammer or weight-drop source for shallow refraction, switching to a Betsy Seisgun when we need reflection data below 40 meters. Processing follows the generalized reciprocal method for refraction and basic CMP stacking for reflection, with first-break picking cross-checked by two analysts. Where the moraine contains buried channels filled with compressible organic silt, the velocity inversion becomes a direct indicator of risk zones that a conventional CPT test might miss if the channel is narrow. We deliver tomographic cross-sections as DXF overlays ready for CAD integration, plus a written report citing shear-wave velocity ranges against NBCC site classification thresholds.
Seismic Tomography Refraction/Reflection Surveys in Markham
Technical reference image — Markham

Local ground factors

Markham's accelerated urbanization since the 1990s has pushed development onto lands once considered marginal: former floodplain edges along the Rouge and Don River tributaries, kettle-lake depressions filled with organic mud, and areas where the glacial till is discontinuously underlain by weathered shale of the Georgian Bay Formation. A foundation design based solely on widely spaced boreholes can miss a 3-meter drop in bedrock over a 15-meter lateral distance, creating a differential settlement problem that manifests as structural cracking within the first two years of occupancy. Seismic tomography addresses this directly by imaging the overburden-bedrock interface as a continuous reflector. On one warehouse project near Woodbine Avenue, our reflection profile identified a paleo-channel completely invisible to the initial five-borehole grid; the structural engineer adjusted footing depths in that zone, avoiding a costly post-construction underpinning scenario. The risk is not theoretical in this municipality, it is mapped in the drift-thickness data published by the Ontario Geological Survey.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.co

Video resource

Reference parameters

ParameterTypical value
MethodSeismic refraction and high-resolution reflection
Source typeSledgehammer, weight drop, or Betsy Seisgun (reflection)
Geophone array24–48 channel, vertical 4.5 Hz or 14 Hz geophones
Max investigation depth30–60 m (refraction); >80 m (reflection)
Data formatSEG-2 / SEG-Y raw files, DXF cross-sections, PDF report
Velocity model outputP-wave and S-wave tomography (MASW-derived Vs30 optional)
Standard referenceNBCC 2020, CSA A23.3, ASTM D5777 for refraction guidelines
Typical line length46–115 m for refraction; 60–300 m for reflection profiles

Related services

01

Seismic Refraction Tomography

Ideal for mapping top-of-bedrock, rippability assessment, and overburden layering to depths of 30–60 meters. We use multiple shot points and a dense geophone spread to generate a continuous P-wave velocity cross-section. Common applications include pre-excavation planning for deep sewers, parking garage footings, and tower crane pads where bedrock competence must be confirmed across the entire footprint.

02

High-Resolution Seismic Reflection

Deployed when the target is deeper than 40 meters or when refraction is blind to a low-velocity layer. A Betsy Seisgun source and 48-channel array produce a reflectivity section analogous to a mini-seismic line used in oil exploration. In Markham this method has proven effective for mapping buried bedrock valleys beneath the moraine and for confirming the continuity of aquitard layers in hydrogeological studies.

Applicable standards

NBCC 2020 (National Building Code of Canada) – seismic site classification, CSA A23.3 – design of concrete structures with seismic provisions, ASTM D5777 – standard guide for seismic refraction method, Ontario Building Code O.Reg. 332/12 – geotechnical investigation requirements

Frequently asked questions

How much does a seismic refraction or reflection survey cost for a typical Markham site?

Budget figures for a seismic tomography survey in Markham generally fall between CA$4,080 and CA$7,420, depending on the number of survey lines, total lineal meters, source type, and whether both refraction and reflection are required. A small residential lot with one refraction line is at the lower end; a multi-line commercial site requiring reflection processing and S-wave analysis trends toward the upper range. We provide a fixed-price scope after reviewing the site plan and drilling logs.

Can seismic tomography completely replace boreholes on a Markham project?

No, and we never recommend it. Seismic tomography provides continuous subsurface imaging between boreholes, but it requires at least one or two calibration points (borehole logs or CPT soundings) to tie seismic velocity to actual lithology. The most solid site characterization strategy combines targeted drilling with seismic profiles, giving you both the material properties from samples and the lateral continuity from tomography.

How does a refraction survey help with NBCC site classification in York Region?

NBCC Table 4.1.8.4.A defines site classes based on the average shear-wave velocity in the upper 30 meters (Vs30) and other criteria. Our refraction survey measures P-wave velocity directly, and we can derive S-wave velocity either through MASW analysis on the same geophone spread or by using established Poisson ratio correlations for the glacial sediments typical of Markham. The resulting Vs30 value places your site into Class C, D, or E, which directly influences the seismic design forces used by the structural engineer.

How long does a seismic survey take on a typical commercial lot in Markham?

Field acquisition for a single refraction line of 69 to 92 meters takes roughly half a day with a two-person crew, including setup and breakdown. A multi-line survey or one requiring reflection shooting may extend to a full day on site. Data processing and interpretation add 3 to 5 business days, after which you receive the tomographic cross-sections and a report with velocity-to-material correlations tied to your existing borehole data.
