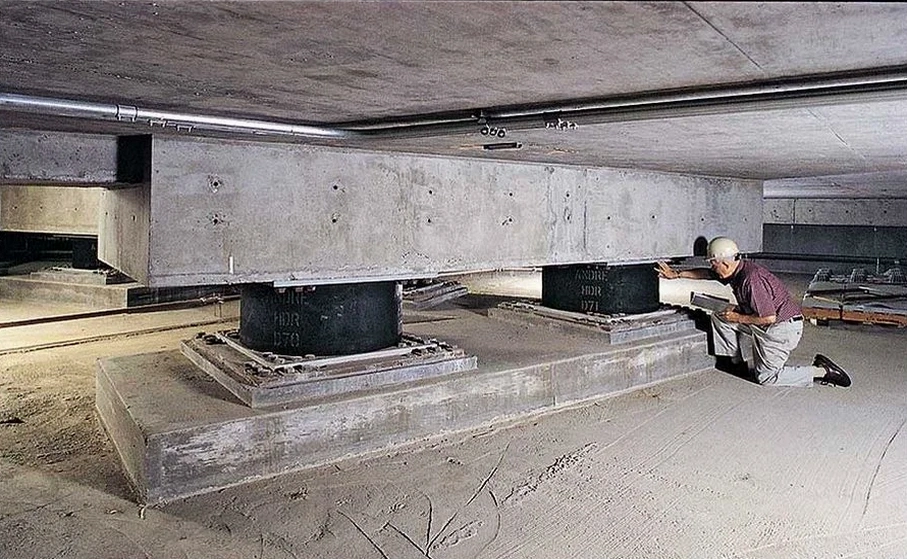

The 2020 National Building Code of Canada (NBCC) enforces strict seismic hazard requirements for structures in Southern Ontario, and Markham’s position within the Oak Ridges Moraine corridor makes compliance a genuine engineering challenge. The local subsurface typically consists of dense Halton Till overlying stratified glaciolacustrine deposits from the former Lake Iroquois shoreline, a sequence that can amplify ground motion unpredictably during a seismic event. A conventional fixed-base design in Markham often struggles with this amplification because the stiff till overlays softer, water-bearing silts. We address this by integrating a base isolation system that decouples the superstructure from the foundation movement, drastically reducing lateral forces. Selecting isolators for Markham demands a thorough seismic microzonation to capture the basin edge effects that the generic NBCC spectral values may not fully represent in the Rouge River valley area.
Isolating a Markham structure isn't just about reducing base shear; it's about managing the 200 mm of lateral displacement the system must accommodate when the Rouge River basin resonates.
Local ground factors
In Markham, we often see that the zone where the Halton Till pinches out against the Rouge River floodplain is treated with a uniform response spectrum during preliminary design, which masks a real kinematic interaction risk. A base-isolated building sitting on a mat foundation at the till–lacustrine transition can experience differential ground heave during the spring thaw, shifting the isolators out of their horizontal plane before any seismic load is even applied. This residual tilt, if not corrected during construction, reduces the effective hysteresis loop area and increases the residual displacement after a moderate earthquake. Our risk mitigation protocol involves a plate load test on the subgrade beneath the isolation interface to confirm the bearing capacity stability through freeze-thaw cycles, and we mandate a post-winter survey of the isolator pedestals before the superstructure lateral system is locked in.
Frequently asked questions
What is the typical cost range for a base isolation design package for a mid-rise building in Markham?
For a typical 6-to-10-story structure in Markham, the complete engineering package — including site-specific hazard analysis, isolator specification, NLTHA, and testing oversight — generally falls between CA$5,260 and CA$12,990, depending on the number of isolators, the complexity of the SSII model, and the number of ground motion pairs required by the peer review panel.
How does the NBCC 2020 treat base isolation differently from a conventional fixed-base design?
Under NBCC 2020, a base-isolated structure is designed for a reduced seismic force (R_d × R_o) applied to the superstructure, typically with an R_d of 2.0 and an R_o of 1.3, but the isolation system and the structural elements below it must remain essentially elastic under the MCE ground motion. The code requires explicit modeling of the moat wall impact and a 90th-percentile upper-bound property analysis to account for aging and contamination effects on the isolators.
Is a site-specific seismic hazard analysis mandatory for base isolation projects in Markham?
Yes. While NBCC provides the uniform hazard spectrum for the GTA, the local basin effects in Markham — particularly the impedance contrast between the Halton Till and the underlying Georgian Bay shale — can amplify the spectral ordinates at periods above 2 seconds by 15-20% compared to the generic values. A site-specific probabilistic seismic hazard analysis (PSHA) is required by most peer reviewers and by CSA S832 to justify the isolator displacement demand and to define the minimum moat clearance.
